New Proxxon Bench Drill Machine TBM 220 View larger

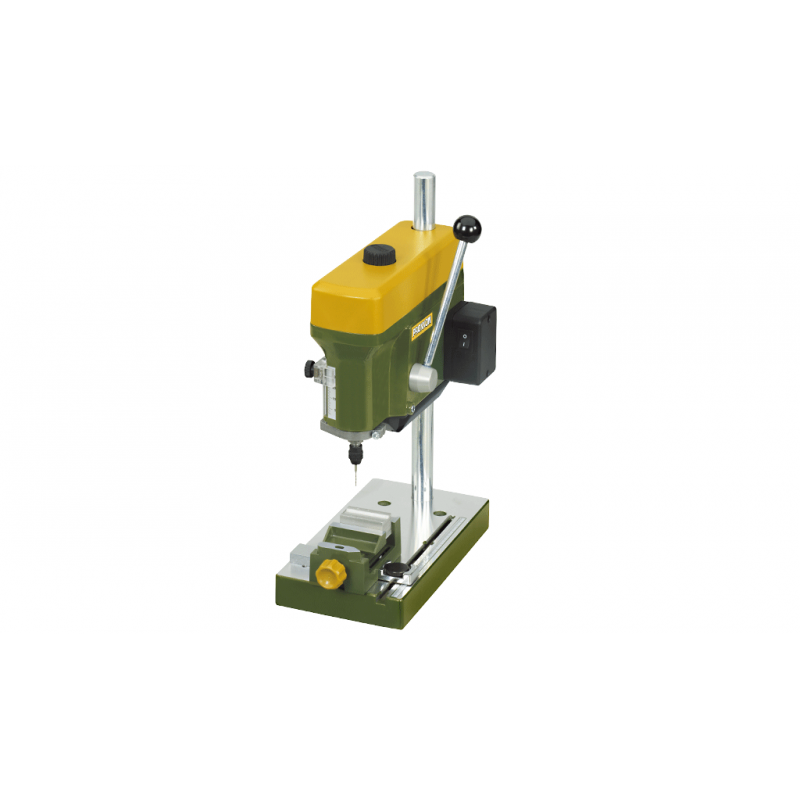

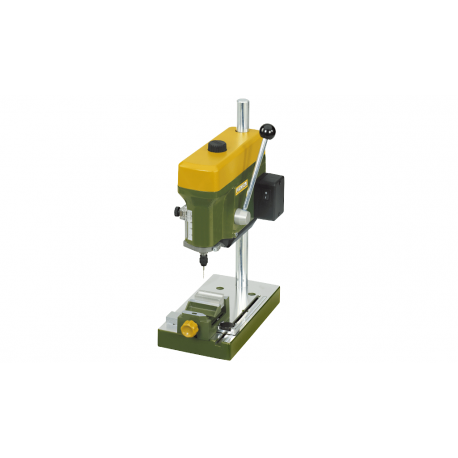

Proxxon Bench Drill Machine TBM 220

PROX2228128

New product

Backorder (7 - 10 working days)

198,00 € tax incl.

Add to wishlist

More info

Plane-milled worktable of die-cast aluminium (220 x 120mm) with adjustable fence and scale as well as threaded holes for securing the MICRO compound table KT 70.

Solid steel column (20 x 340mm). Adjustable fence with scale. Solid, hard-chromed steel column, 340mm high, 20mm diameter. Super stable die-cast head with VDE approved 220 - 240V motor. Very quiet and of long life expectancy type. Power transmission by aluminium pulleys and flat belt. Three spindle speeds (triple torque at low speeds). Feed lever with adjustable depth scale.

Technical data:
 230V. 85W. 50 - 60Hz. Spindle speeds of 1,800, 4,700 and 8,500rpm. Extremely high rotational accuracy, 30mm feed. Throat depth 140mm. Six triple slit precision collets for shaft sizes 1 - 1.5 - 2 - 2.4 - 3 - 3.2mm are included. 3/8" thread. Weight 3.3kg.

  1. 3 spindle speeds by shifting the flat belt for more than the triple torque in the lower rotational speed range.
  2. Fully adjustable depth gauge.
  3. Machine vice MS 4 made of die-cast zinc is an invaluable accessory.
  4. 6 MICROMOT steel collets are included in the scope of delivery.
